High-Efficiency Industrial & Commercial
UV Water Treatment Systems
Global Manufacturer & Supplier

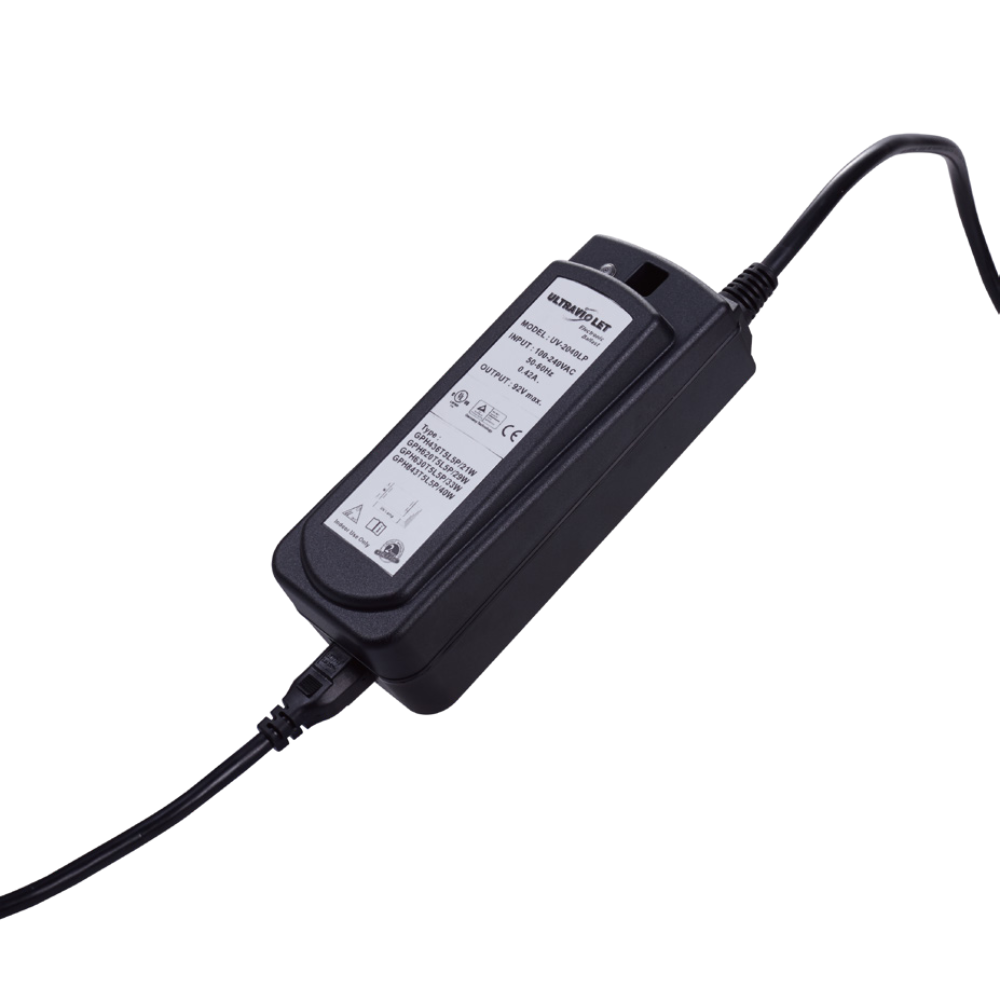

- Ballasts are made of integrated circuits
- Safety Certification: UL, CUL, TUV-CE, UKCA, CB
- Global General Design: 100-240V/50-60HZ
- Temperature control protection, LED and Buzzer Alarm, Relay signal output
- IP65 waterproof design, Water touch automatic protection function
Effectively prevent industrial fires
Patented products
Our 4th generation ballast with automatic protection function when contacting with water. With us, you are in safe hands

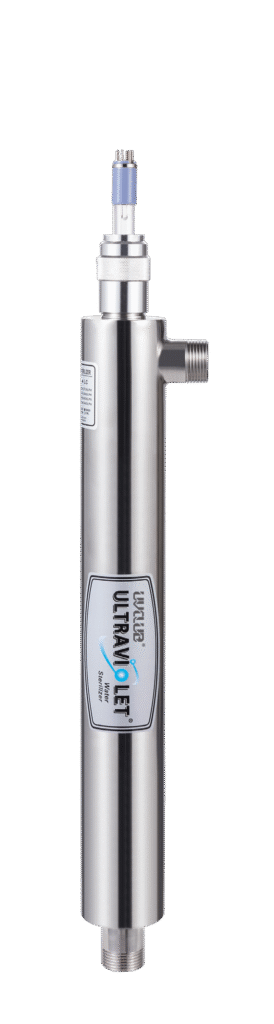

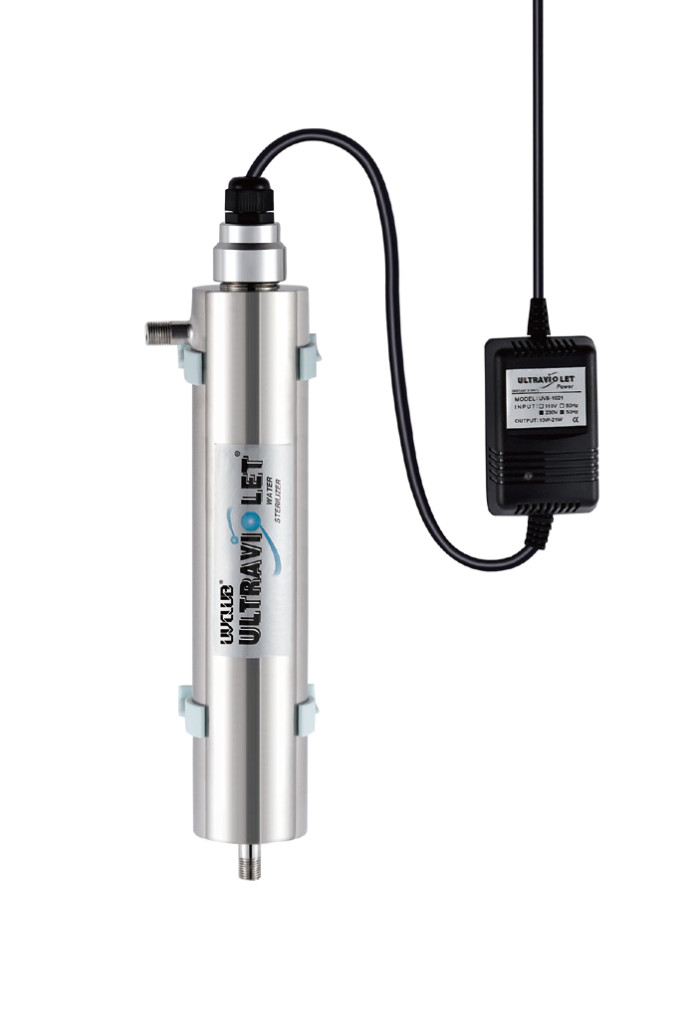

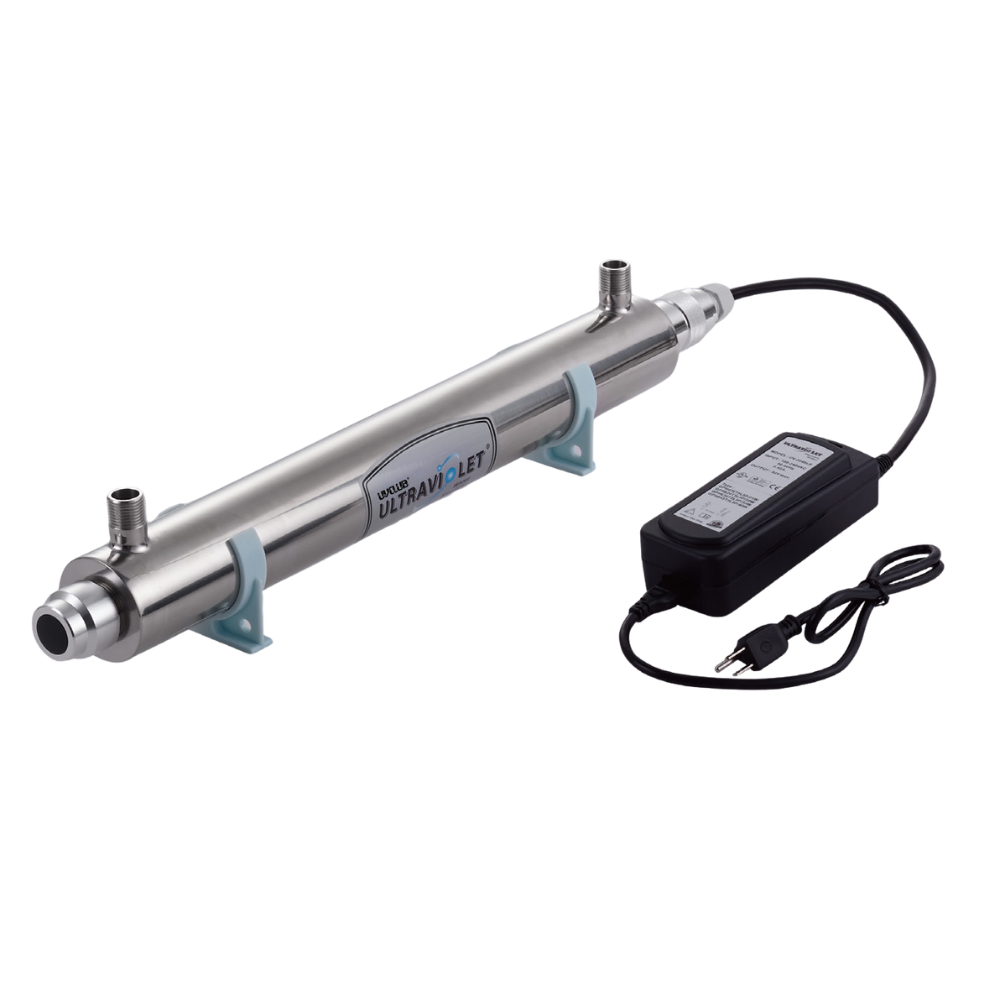

Model: L-2
- Flow Rate: 450LPH(2GPM)
- Inlet/Outlet Size: 1/4" NPT (Male)
- A / B / C Size unit: 362 / 303 / 96 mm

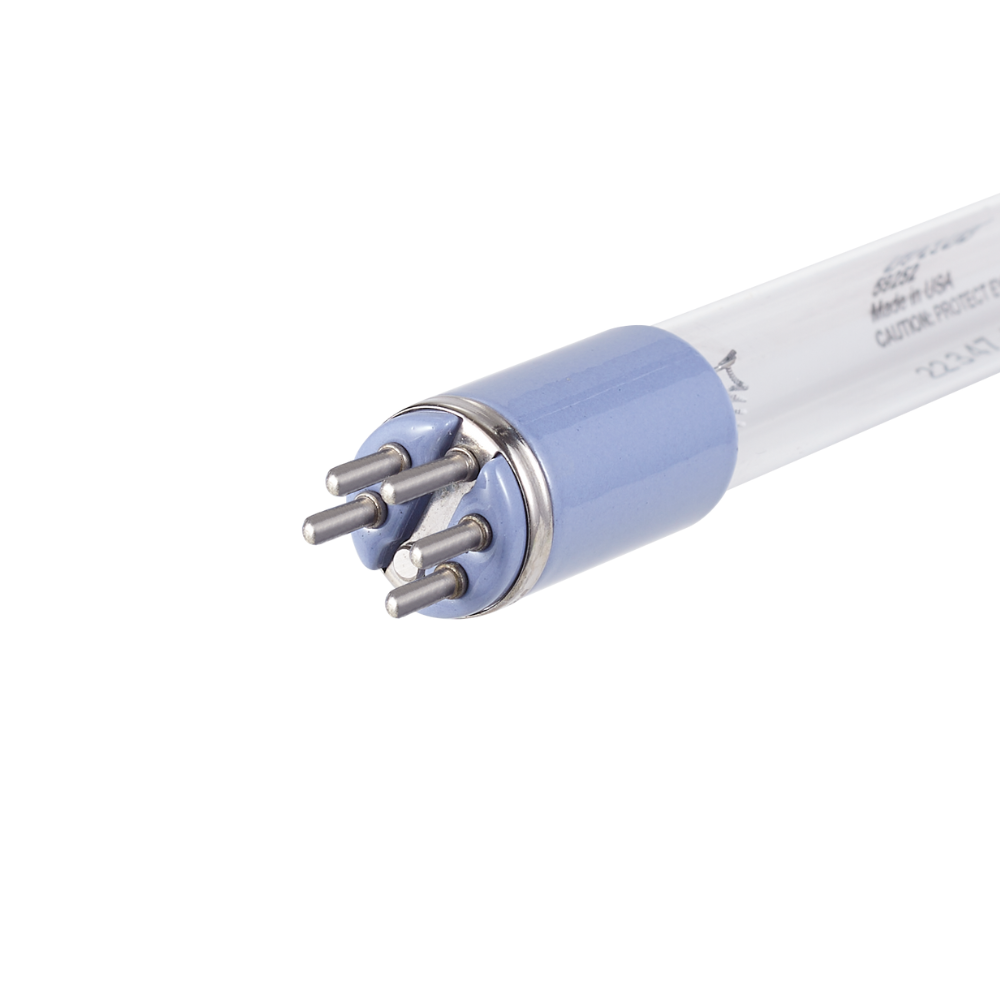

- Lamp Model: T514
- Quartz Thimble: QT245310
- Lamp Designed Operation Life: 8000 / 9000 / 10000Hrs
- Volts: 110V / 50-60Hz
- Alarm: LED / Buzzer
- Chamber Material: 304SS Stainless Steel
- Operating Pressure: 10-100Psi（69-689Kpa)
- Operating Temperature: 2-40°C（36-104 )°F
Optional: Inlet & Outlet size can be Female BSP
Model: L-6
- Flow Rate: 1360LPH(6GPM)
- Inlet/Outlet Size: 1/2" or 3/4" NPT (Male)
- A / B / C Size unit: 526 / 446 / 100 mm
- Lamp Model: T521
- Quartz Thimble: QT245470
- Lamp Designed Operation Life: 8000 / 9000 / 10000Hrs
- Volts: 110V / 50-60Hz
- Alarm: LED / Buzzer
- Chamber Material: 304SS Stainless Steel
- Operating Pressure: 10-100Psi（69-689Kpa)
- Operating Temperature: 2-40°C（36-104 )°F
Optional: Inlet & Outlet size can be Female BSP

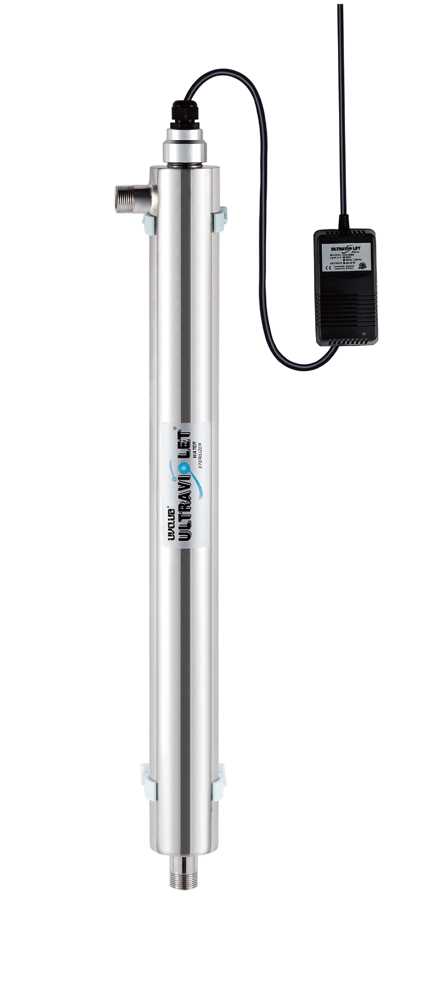

Model: L-8
- Flow Rate: 1814LPH(8GPM)
- Inlet/Outlet Size: 3/4" NPT (Male)
- A / B / C Size unit: 708 / 643 / 102 mm
- Lamp Model: T529
- Quartz Thimble: QT245645
- Lamp Designed Operation Life: 8000 / 9000 / 10000Hrs
- Volts: 110V / 50-60Hz
- Alarm: LED / Buzzer
- Chamber Material: 304SS Stainless Steel
- Operating Pressure: 10-100Psi（69-689Kpa)
- Operating Temperature: 2-40°C（36-104 )°F
Optional: Inlet & Outlet size can be Female BSP
Model: L-12
- Flow Rate: 2720LPH(12GPM)
- Inlet/Outlet Size: 1" NPT (Male)
- A / B / C Size unit: 941 / 873 / 102 mm
- Lamp Model: T540
- Quartz Thimble: QT245875
- Lamp Designed Operation Life: 8000 / 9000 / 10000Hrs
- Volts: 110V / 50-60Hz
- Alarm: LED / Buzzer
- Chamber Material: 304SS Stainless Steel
- Operating Pressure: 10-100Psi（69-689Kpa)
- Operating Temperature: 2-40°C（36-104 )°F
Optional: Inlet & Outlet size can be Female BSP
Technology
Wonder-UV
Wonder-UV is one of the best secure UV systems in the world. After 22 years of experience, with the help of the top professional engineers around the world, the Wonder-UV’s fourth-generation waterproof ballast will be launched into the global market in 2024.
Are Your Systems Truly Globally Certified?

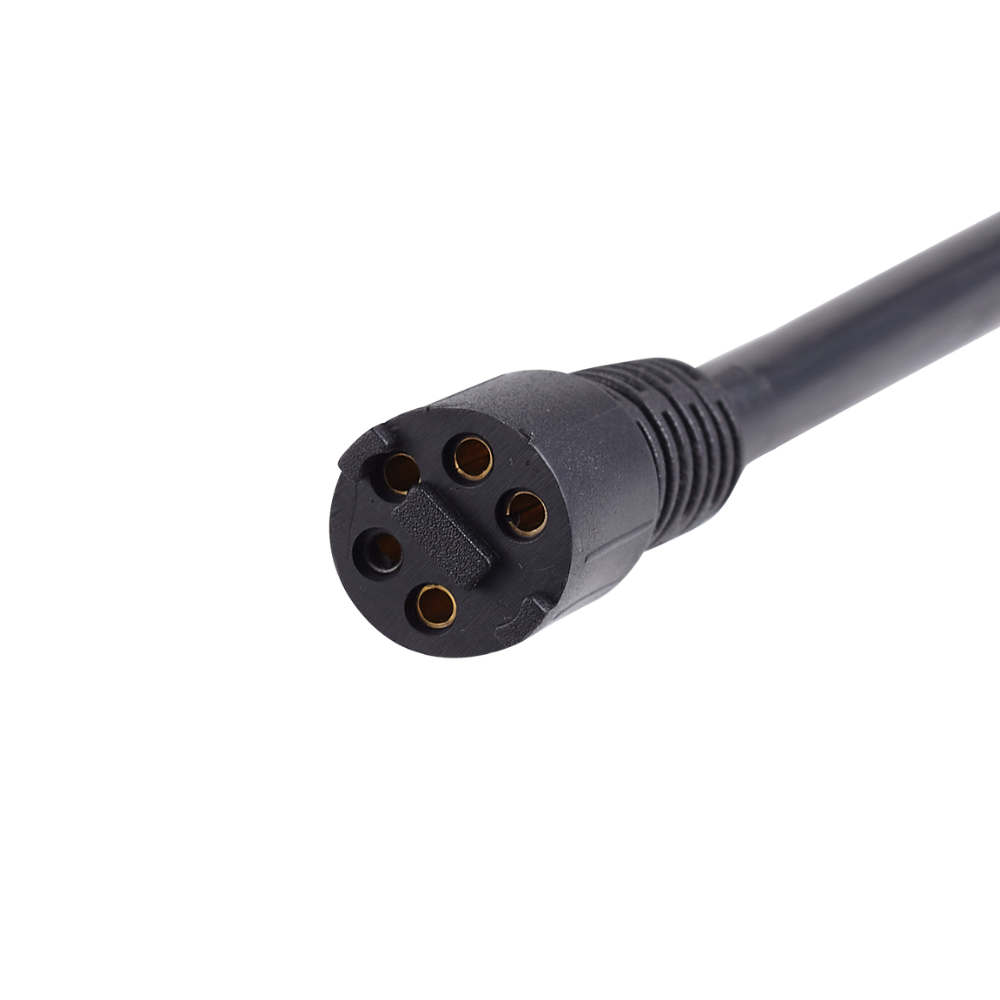

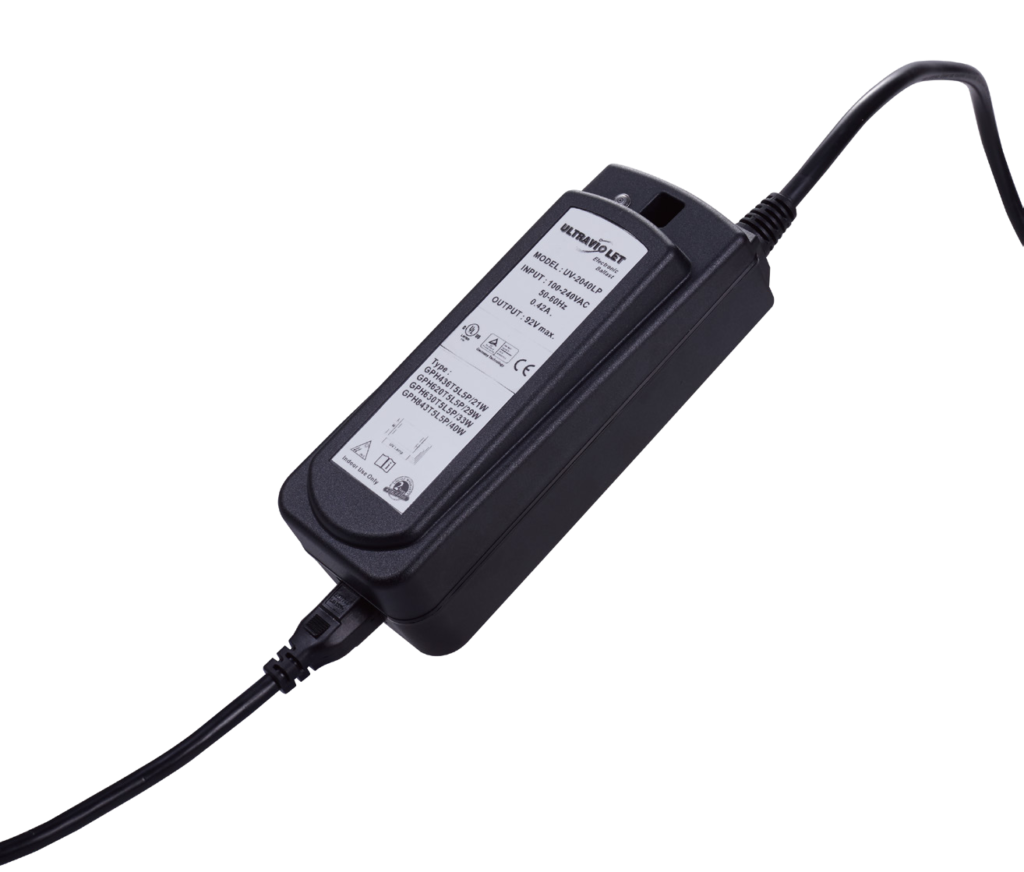

This ballast is made of an integrated circuit. It can avoid short circuited caused by water leakage due to improper installation or O-ring aging and cracking. Once a liquid is detected on the socket or pin of the lamp, the circuit will be cut off.
Some multinational giant companies have asked their factories around the world to have this security feature in their UV system, which can effectively prevent the fire caused by water seepage. At the same time, it can also avoid electric shock when used in the swimming pool and SPA industries.
